Leading Manufacturers, Exporters and Wholesaler of Optical Lens Cutting Grinding Polishing Machine, SKE-12E Glass Edge Polishing Machine, ske-5e 14 hp glass polish machine, SKE-5EP Glass Edge Polishing Machine, SKE-9E Straight Glass Edge Polishing Machine and SKE-EP Glass Edge Grinding Polishing Machine from Ahmedabad.
Business Type | Manufacturer, Exporter, Supplier |
Brand Name | SKE |
Automatic Grade | Manual |
Power | Single Phase |
Application | Lens, Frame Fitting |
Size | 18'' X 9'' X 16'' |
Type | Electrical Grinder,Optical Lens Grinding With Auto Edger |
Weight | 16 Kgs |
Country of Origin | India |
Categories | Hand Cutting Grinding Polishing |
Operation Mode | Manual |
Handling | Portable |
Model Number | SKE-AHE |
Preferred Buyer From
Location | Worldwide |
USING AUTO EDGER DIAMOND WHEELS IN HAND EDGER='AHE'
'SKE-AHE MB'-WORLD FIRST AND LOWEST RATE OPTILINE HAND EDGER WITH AUTO EDGER KWALITY DIAMOND WHEELS,CR/PC CUTTER AND POLISHING WHEEL in metal and frp body with 125x43x3 and 150x43x3 mm diamond wheels with one year replacement gurantee &life time redresing free.
we 'ske'manufacturing under registered trademark all diamond wheels and processing machines for all industries. . (watch,optical,glass,stone,ceramics. . )
WORKING PROCESS OF MACHINE:
in this metal bonded auto edger quality diamond wheel there are four types diffrant diamond wheels are joint in combination,- like one of them diamond wheel is with very rough diamond for fast grinding c. R/p. C. Whole lens with out cutting ,second wheel is with medium rough diamond for all lens/glass grinding and third fine for finishing all lens , finally fourth 'v' grooving fine wheel is for full frame fiting . Also you can use the border of this 'v' groving wheel to make groove on the border of your lens for reameless glass fitting. Whole grinding process is under water flow to protect mico dusts spreding in your showroom while grinding all lens. In accordance with the set industry norms, our hand edgar is manufactured by our experts using optimum quality raw material and advanced techniques. Sturdy design of our provided edgar ensures longer service life under harsh working environment. ske-auto hand edger machine may be the world's first machine with this types high quality 3 mm 5 mm diamond layes wheel in a unbelivable low cost with steel and fiber glass body.
features:
Additional Information:
Business Type | Manufacturer, Exporter, Supplier |
Country of Origin | Made In India |
Automation Grade | Semi-automatic |
Power | 31HP |
Motor Power | 3HP |
Phase Type | 3PHS |
Brand | SKE |
Usage/Application | Heavy Duty Work |
Abrasive Grade | Diamond |
Phase | 3PH |
Product Code | SKE12E32HP |
Port | AHMEDABAD |
Payment Terms | T/T |
Delivery Time | 60DAYS |
Packaging Details | SEPARETE VAHICAL DOOR DELIVERY |
Preferred Buyer From
Location | Worldwide |
SKE-12E(31hp)HEAVY DUTY MAKE IN INDIA semi automatic machine for glass edging with 12 motors ,out of them 3+3 =6 motores are for glass both sides 45' chemfering polishing and 6 motors are for edge grinding ,smoothing and polishing works it can give batter polishing then 9 motors machine.
Business Type | Manufacturer, Exporter, Supplier |
Country of Origin | India |
Weight | 1000-2000kg |
Type | Glass Polishing Machines |
Application | Glass Polishing, Glass Edge Grinding Polishing |
Power | 9-12kw, 14HP |
Automatic Grade | Semi Automatic |
Condition | New |
Color | Blue,Gray |
Driven Type | Electric |
Brand Name | SKE |
Thickness of Glass | 4mm to 25 Mm |
Cable Length | 1mt. |
Speed | 1 Meter per 1 Minute |
Model Number | SKE-5E/7E |
Size | 18'X 6' X6' |
Height | 8' |
Production Per Minute | 1 Meter |
Space Required | 30 Sq.mtrs |
Thickness Of Glass Mm | 4 MM TO 25 MM |
Product Code | SKE5E |
Port | AHMEDABAD |
Payment Terms | T/T |
Delivery Time | 2MONTHS |
Packaging Details | SEPERATE VEHICAL |
Preferred Buyer From
Location | Worldwide |
mfg.by s.k.enterprise,ahmedabad since 1993,make in india
base co.with 'ske' a reg.trade mark.
ske-5e(14hp)straight line semi automatic glass edge polishing machine for straight line glasse edge polishing with given 5special wheels for glass size 3x3 inches to 3x3 miters,in 3 mm to 19mm ,digital penal board.
many types automatic cutting,grinding,polishing &
also hand processing machines are available.
additional information:
Business Type | Manufacturer, Exporter, Supplier |
Brand | SKE |
Automation Grade | Semi-automatic |
Machine Capacity | 3x3 Inches To 3x3 Mitrs. Of 3mm To 30 Mm Thk. |
Country of Origin | Made In India |
Production Capacity | 250 Sq. Fits per Hour |
Disc Diameter | 150MM |
Space Required | 60 Sq.mtrs |
Thickness of Glass | 3mm to 30 Mm |
Weight | 100-1000 Kg |
Preferred Buyer From
Location | Worldwide |
Additional Information:
Business Type | Manufacturer, Exporter, Supplier |
Phase Type | 3 PHASE |
Motor Power | 25HP |
Material | MS/CI |
Country of Origin | Made In India |
Machine Capacity | 200/250 Sq.fits Per Hr. |
Automation Grade | Semi Automatic |
Brand | SKE |
Condition | New |
Port | AHMEDABAD |
Payment Terms | T/T |
Delivery Time | 60DAYS |
Packaging Details | DOOR DELIVERY IN SEPARETE VEHICAL |
Preferred Buyer From
Location | Worldwide |

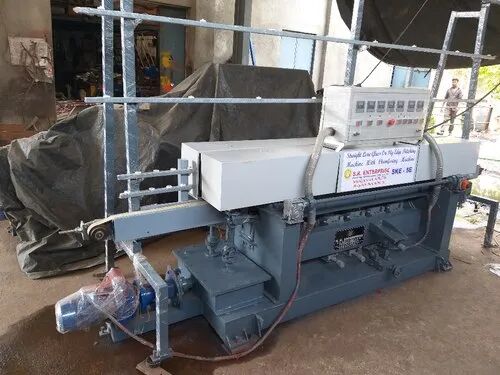

SKE:9E(25 HP)-STRAIGHT LINE GLASS EDGE POLISHING SEMIAUTO MACHINE WITH STANDARD QUALITY MOTORS ARE PERFACTLY AND REGULARLY MANUFACTURING AT OUR PLACE AGAINST ORDER.
(50,000/WILL BE EXTRA FOR SS TANK ATTECH WITH MOTORS)
ALSO ON ORDER 3 MOTORS TO 12 MOTORS TO PROCESS GLASS EDGE POLISHING WITH LOW POWER AND MONEY CUNSUMTION.
live demo videos on youtube-type -'skeasp'
iso 9001-2015 certifie and registered trademark ssi company manufacturing diamond wheels and processing machines since 1993.
straight line glass edge grinding and polishing machines are mostly using for glass edge grinding,chemfering and polishing vertically ,with 3,. 4,5,7,9,12 wheels /heads/motors , we are also providing machines with specially designing for ,
1)glass on plywood of kitchen sutter and doors
2)glass on glaze tiles for swarooms/mall/ walls and floorings
3)glass for 3mm/4mm electrical swich boards/led lights /automobile murrors etc. And many more. . . . As per your designe and requirement we can built a machine and makes your dream real in your life.
Additional Information:
Business Type | Manufacturer, Exporter, Supplier |
Country of Origin | Made In India |
Machine Capacity | 10 Mints 6x6 Fits Glass Edge Grinding |
Automation Grade | Manual |
Brand | SKE |
Power Consumption | 2 HP |
Phase | Double Phase |
Preferred Buyer From
Location | Worldwide |
SKE-EP(2HP)SHAPE GLASS HAND EDGE PROCESSING HPRIZONTAL(8X4 FT) BALL ROLLERS TYPE MACHINE ,3 WHEELS ON A SPECIAL SINGLE MOTOR SHAFT FOR 1-6/8 FITS ALL SHAPES GLASS EDGE GRINDING,HALF /FULL ROUNGING WITH CHANGING WHEELS AS PER THK.& PROCESS.
SKE-EP(2HP)straight Line and Shapes Glass Hand Grinding , C- Polishing with Changing Wheels Size and Process Wise .machine with Rollers On Plate and Scrolling Special Rolles Strips with Rubber Ball 8x4 Fits Horizontal Heavy Duty 50x50 Mm Square Pipes Structure.2 Hp S/p or 3/ph Special Motor with 3 Wheels On the Same Shaft to Up and Down When Using Rough,Fine & Polish Wheel with Out Changing.with Water Collecting Tray,Tank Pump Electrical Penal Board are Atteche with Machine. Machines are Available in Different Sizes Smaller and Biger as per Your Requirements On Order.
