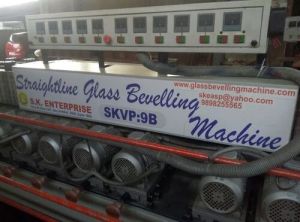

SKE-11B Glass Edge Beveling Machine
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | SKE |
| Usage | Glass Edge Bevel Grinding &polishing |
| Capacity | 1000 -1500 R.fits Pe Day |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
SKE-11B(34HP)semiautomatic straight line edge bevel grinding and polishing machine is sutable for bevel polishing with its 9 motors and chempering on bevel side edge also with special 2 extra motors. Ske-11B is sutable for various flat glass or mirror with a wide processing range.
the minimum processing glass size 150 mm x 150 mm and the maximum width of bevel can be 50 mm . The controlling manual and semi automatic system are useing for glass thickness,bevel width,angle and processing speed. The convey speed adopts speed adjustment of frequency conversion.
speed-1-10 m/min
minimum glass size-150x150mm(50 x 50 mm-special order)
maximum beveling -50 mm
glass thk. -3 - 25 mm
beveling degree -3-45'9 (as per cliant order)
note: add in above rate 5-10%p&f,transport +18%gst.
Additional Information:
- Pay Mode Terms: T/T (Bank Transfer)
- Production Capacity: 1000 -1500 R.FITS PE DAY
- Delivery Time: 75 DAYS
- Packaging Details: SEPARATE VEHICLE
